1、 Main technical specifications of automatic washing machine
| XTQ-15 | XTQ-20 | XTQ-30 | XTQ-50 | XTQ-70 | XTQ-100 | XTQ-120 | |
rated capacity | ||||||||
Min | kg | 10 | 15 | 20 | 35 | 50 | 70 | 90 |
Max | kg | 15 | 20 | 30 | 50 | 70 | 100 | 120 |
Drum | ||||||||
Diameter | mm | 636 | 700 | 900 | 1080 | 1080 | 1200 | 1300 |
Diameter deepness | mm | 470 | 500 | 500 | 575 | 730 | 856 | 900 |
Overall Dimension | ||||||||
Hight | mm | 1300 | 1400 | 1635 | 1800 | 1800 | 2030 | 2100 |
Length | mm | 1240 | 1260 | 1460 | 1610 | 1760 | 1990 | 2195 |
Width | mm | 1000 | 1050 | 1400 | 1650 | 1550 | 1690 | 1790 |
Drum speed | ||||||||
Washing rotate speed | r/min | 45 | 45 | 36 | 35 | 33 | 31 | 30 |
Uniformity speed | r/min | 90 | 85 | 80 | 75 | 70 | 65 | 60 |
Mid speed | r/min | 450 | 450 | 420 | 380 | 350 | 310 | 310 |
High speed | r/min | 890 | 890 | 780 | 760 | 680 | 680 | 650 |
Motor | kw | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Draining valve | mm | φ70 | φ70 | φ100 | φ100 | φ100 | φ140 | φ10-2 |
Filling with water | ||||||||
Hot water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" | 3/2" | |
Cold water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" | 3/2" | |
Steam pipe | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" | |
Power supply | Standard:380+N-3PH-50HZ | |||||||
2、 Product introduction

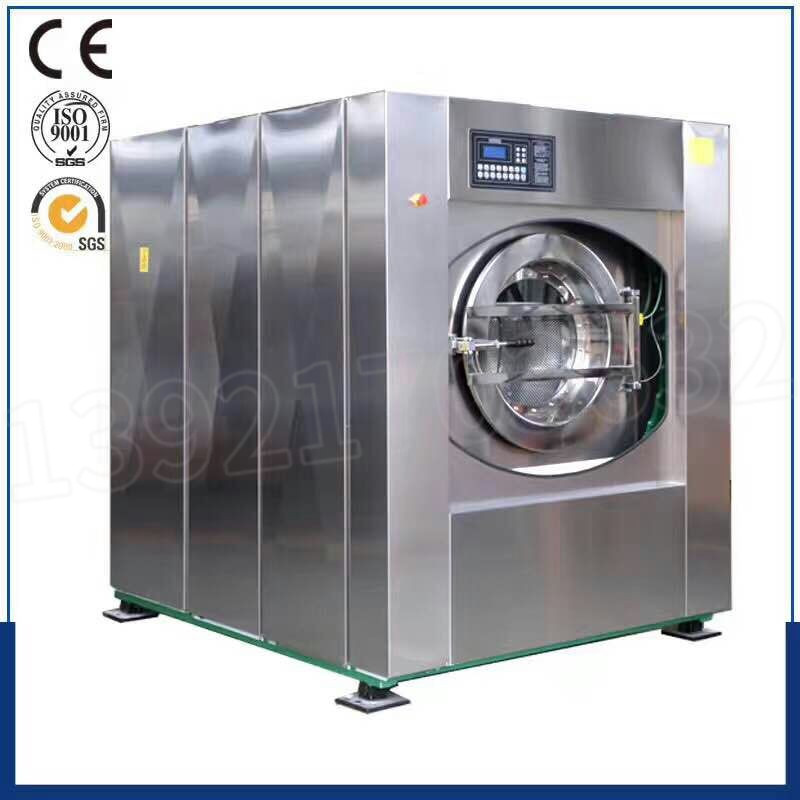

Full automatic washing machine, full computer LCD man-machine dialogue interface, Chinese display large screen, there are 30 different washing procedures to choose, can meet any washing requirements, fully realize the automation of washing, bleaching, washing and other processes. The automatic washing machine adopts suspension vibration avoiding structure and spring damping system. It has ultra-low vibration and can be safely placed on any floor without foundation. The automatic washing machine adopts imported frequency conversion system, which has the advantages of convenient speed regulation, stable start-up, low noise, obvious energy-saving effect and simple and reliable transmission structure. The fully automatic washing machine is fully closed after the drainage frame structure design to reduce pollution and keep the workplace dry and clean. Both inner and outer cylinders are made of stainless steel. The service life is improved. Stainless steel refined door, pneumatic safety device, greatly improve the safety in use. The design of rear concentrated oil lubrication pump realizes automatic lubrication of transmission system, advanced and humanized care.
